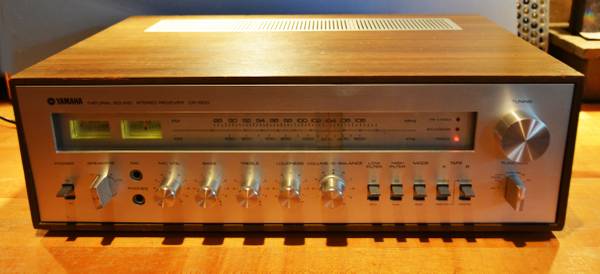

Yamaha CR-600 Natural Sound Receiver - $375 (SA)
condition:
good
make / manufacturer:
Yamaha
model name / number:
CR-600
size / dimensions:
18" x 6 x 11"
QR Code Link to This Post
Very good condition. Clean, works well, functional and in cosmetically good condition, glass is very clean, all lights and LEDs work and from a non smoking environment. The metal faceplate is 1/8" thick. The wood cabinet is in good condition except for a few corners. Overall great shape for its age. Its always said about this Yamaha series, that they are, 'built like a tank'.
FEATURES
Power Amp Section:
30 watt amp that bench tests at 40 watts per channel.
DC OCL Pure Complementary Power Amplifier. Separable Preamplifier /Power Amp.
2 Stereo Speaker Systems. 4-Channel Ready IF Output Jack.
FM Tuner Section:
FM Front End with Dual MOS FET´s & Frequency-Linear 4-Gang Tuning Capacitor.
IC IF Amplifier (3-Stage Differential Amplifier, 6 Ceramic Filters). Auto-Touch Tuning.
IC Multiplex Stereo Demodulator. Diode Indicator Lights. Strenght-Meter, Center Tune Meter.
FM Muting. 3-Stage DC Equalizer. DC Low-Noise Tone Control and Filter Amplifier.
Continuously-Adjustable Loudness. Mic Mixing. Tape-to-Tape, Tape Dubbing. 2 Phono Inputs.
This unit has 4 rear AC outlets, two switched and two unswitched.
Specifications (from Classic Audio.com)
System: Transistor
Colour: 1=Silver, 2=Black: 1/Woodcase)
Power consumption: 120 (max 200) W @ 120/240 V
Pre Amplifier
Inputs: Phono MM I+II; AUX; Tape A+B; MIC; MAIN
Quadro: IF Output
Inp. Sensitivity High Level: 150 mV
Inp. Impedance High Level: 45 kΩ
Frequency Response High Level: 10-50,000 (+0.5/-1 dB) HZ
Signal/Noise High Level: (IHF) >90 db
Inp. Sensitivity Phono MM: 3 (max 135) mV
Inp. Impedance Phono MM: 50 kΩ
Inp. Sensitivity Phono 2: 3 (max 135) mV
Inp. Impedance Phono 2: 50 kΩ
Frequency Response Phono MM: RIAA 30-15,000 Hz (±0.5 dB)
Signal/Noise Phono MM: (IHF) >75 db
Outputs: PRE OUT; REC OUT A, B
Frequency Response: MIC-POWER OUT 100-10,000 (+0.5/-6 dB) HZ
Harmonic Distortion: <0.1 (Phono-PRE OUT)
<0.02 (AUX-PRE OUT) % at rated output
Output Voltage Rec Out: 150 mV
Impedance Pre Out: 2 kΩ
Output Voltage Pre Out: 775 (max 3,000) mV
Impedance Rec Out: 2 kΩ
Equalizer
Frequencies: ±10 dB/50 Hz; ±10 dB/ 1 kHz
Filters: LOW -3 dB/50 Hz (12 dB/oct)
HIGH -3 dB/8 kHz (6 dB/oct)
Loudness: Continuously-Adjustable (+10 dB/100 Hz; +5 dB/1 kHz)
Power Amplifier
Speaker Outputs: 2 x 2 Speskers; Phones
Continuous Power 4Ω: 50 + 50 (1 kHz, each channel driven)
45 + 45 (1 kHz, both channels driven
35 + 35 (20-20,000 Hz, both channels driven) Watts
Continuous power 8Ω: 40 + 40 (1 kHz, each channel driven)
35 + 35 (1 kHz, both channels driven
30 + 30 (20-20,000 Hz, both channels driven) Watts
Dynamic Power 4Ω: (IHF) 140 Watts
Dynamic Power 8Ω: (IHF) 100 Watts
Frequency Response: 10-100,000 (+0/-1 dB) HZ
Input Sensitivity: 775 mV
Input Impedance: 45 kΩ
Signal to Noise Ratio: >100 db A, short circuited
Damping factor: 70
Harmonic Distortion: <0.1 % at rated output
Tuner
Display: analog
Frequency Range FM: 88-108 MHz
Frequency Range AM: 525-1,605 KHz
Station Preset: 0
Signal Strength Meter: 1 analog : 0=NO, 1=YES
Center Tuning Meter: 1 analog : 0=NO, 1=YES
Instrument Multipath: 0 : 0=NO, 1=YES
Inp. Sensitivity Stereo: 2.0 μV
Frequency Response: 50-10,000 Hz (±1.0 dB)
20-15,000 Hz (+1.5/-3.0 dB) HZ
Harmonic Distortion: MONO 0.3 (400 Hz)
STEREO 0.5 (400 Hz) % at rated output
Separation: > 40 (400 Hz)
28 (50-10,000 Hz) db
Signal/Noise Stereo: 70 db
Crosstalk: 55 db
IF Rejection: > 95 db
Output Voltage: 400 (IF) mV
Impedance Out: 1 (IF) kΩ
2. Physical
Dimensions in Inches: 18-3/4" x 6-1/4" x 11-3/4" (w) x (h) x (d)
Weight in lbs: 27.5 lbs
