Solar Well Backup System - $14,950 (Boerne)
Breeze Way
QR Code Link to This Post

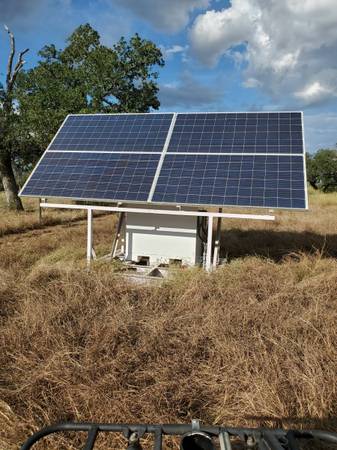

Solar Panels - - The solar modules used are the Canadian Solar CS6U-325P. Tempered glass and an IP67 junction box used for long term weather endurance.

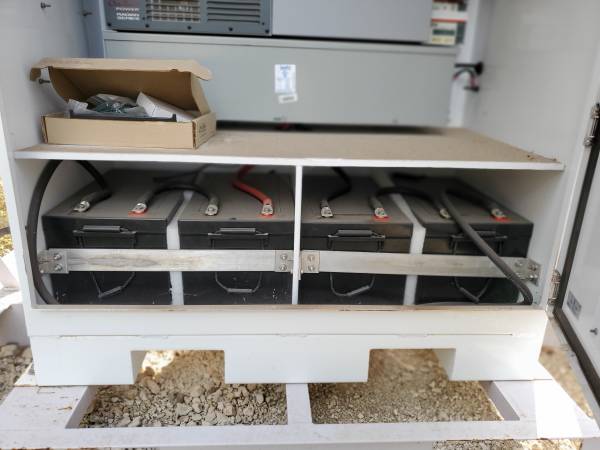

Batteries - UPG UB8D which are valve-regulated sealed lead-acid battery. It has a nominal voltage of 12V with a capacity of 250Ah at the 20-hour rate. The battery has been tested and rated as non-spillable complying with all applicable DOT, IATA, & FAA requirements.
Load Center: The load center used is for the PV and AC applications (split-phase). This load center has dual AC input, PV GFDI, PV array input, inverter circuit breaker and 140/240 VAC maintenance bypass assembly.
System Output – 1.3 kWh @ 220VAC 250 Amp hours
